產品名稱: Minicrop
  • 產品描述
  • 產品規格
  • 易損件

4工作站單缸液壓沖剪機:

  • 用于沖剪U型鋼和I型鋼的鵝頸型模具固定架.
  • 90o角鋼剪裁.
  • 圓鋼、方鋼剪切.

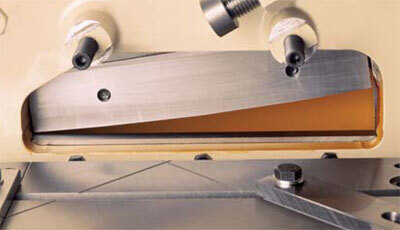

  • 板材剪切最小化形變.

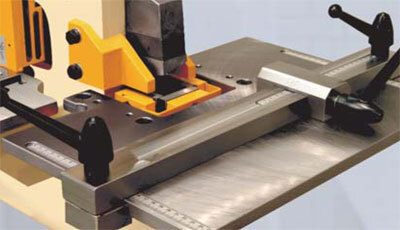

  • 獨立矩形模剪工作臺.
  • 可選配刀具最高可剪裁高達100mm厚的U型鋼、I型鋼.

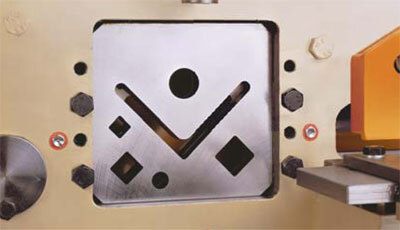

為沖孔和模剪提供非常廣泛的可選配置.





產品詳情

MINICROP

沖壓力

45 Tons

最大沖孔

? 28×10 mm

板材剪切

300 x 10 mm
200 x 13 mm

角鋼剪切 90o

80 x 80 x 8 mm

開槽

60 x 50 x 7 mm



  • 基于 45 Kg/mm2 抗性的材料.
  • GEKA可能會(huì )更換技術詳情,設備和型號照片,也包括其它所包括的信息.
  • 以上技術規格有效,不包括有印刷錯誤存在的情況.

FEATURES

MINICROP

Punching Power

45 Tons

Maximum capacity

? 28×10 mm

Shearing of Flat Bars

300 x 10 mm
200 x 13 mm

Angle Shearing at 90o

80 x 80 x 8 mm

Notching

60 x 50 x 7 mm

  • Capacities based on a material resistance of 45 Kg/mm2.
  • GEKA may change technical specifications, equipment and photographs of models, as well as any other information contained herein.
  • Technical characteristics valid except for typographical errors or omissions.
