產品名稱: Microcrop-3工作站單缸液壓沖剪機
- 產品描述
- 產品規格
- 易損件
3工作站單缸液壓沖剪機:
- 沖孔.
- 板材剪切.

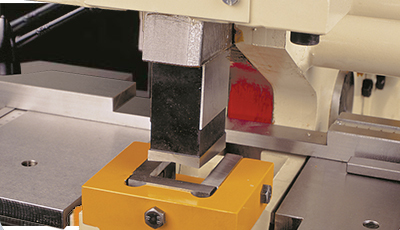

- 角鋼剪切.
可選配置:
- 沖孔模塊可達 ? 36×8 mm.
- 圓鋼剪切形變最小化的專用刀具.
- 矩形開槽.
- 電動停止裝置.
產品詳情 | MICROCROP |
沖壓力 | 36 Ton |
最大沖孔 | ? 28×10 mm |
板材剪切 | 350×6 mm |
角鋼剪切 90o | 80x80x8 mm |
角鋼剪切 45o | 50x50x6 mm |
- 基于 45 Kg/mm2 抗性的材料.
- GEKA可能會(huì )更換技術詳情,設備和型號照片,也包括其它所包括的信息.
- 以上技術規格有效,不包括有印刷錯誤存在的情況.
FEATURES | MICROCROP |
Punching Power | 36 Ton |
Maximum capacity | ? 28×10 mm |
Flat Bars Shearing | 350×6 mm |
Angle Cutting 90o | 80x80x8 mm |
Angle Cutting 45o | 50x50x6 mm |
- Capacities based on a material resistance of 45 Kg/mm2.
- GEKA may change technical specifications, equipment and photographs of models, as well as any other information contained herein.
- Technical characteristics valid except for typographical errors or omissions.
